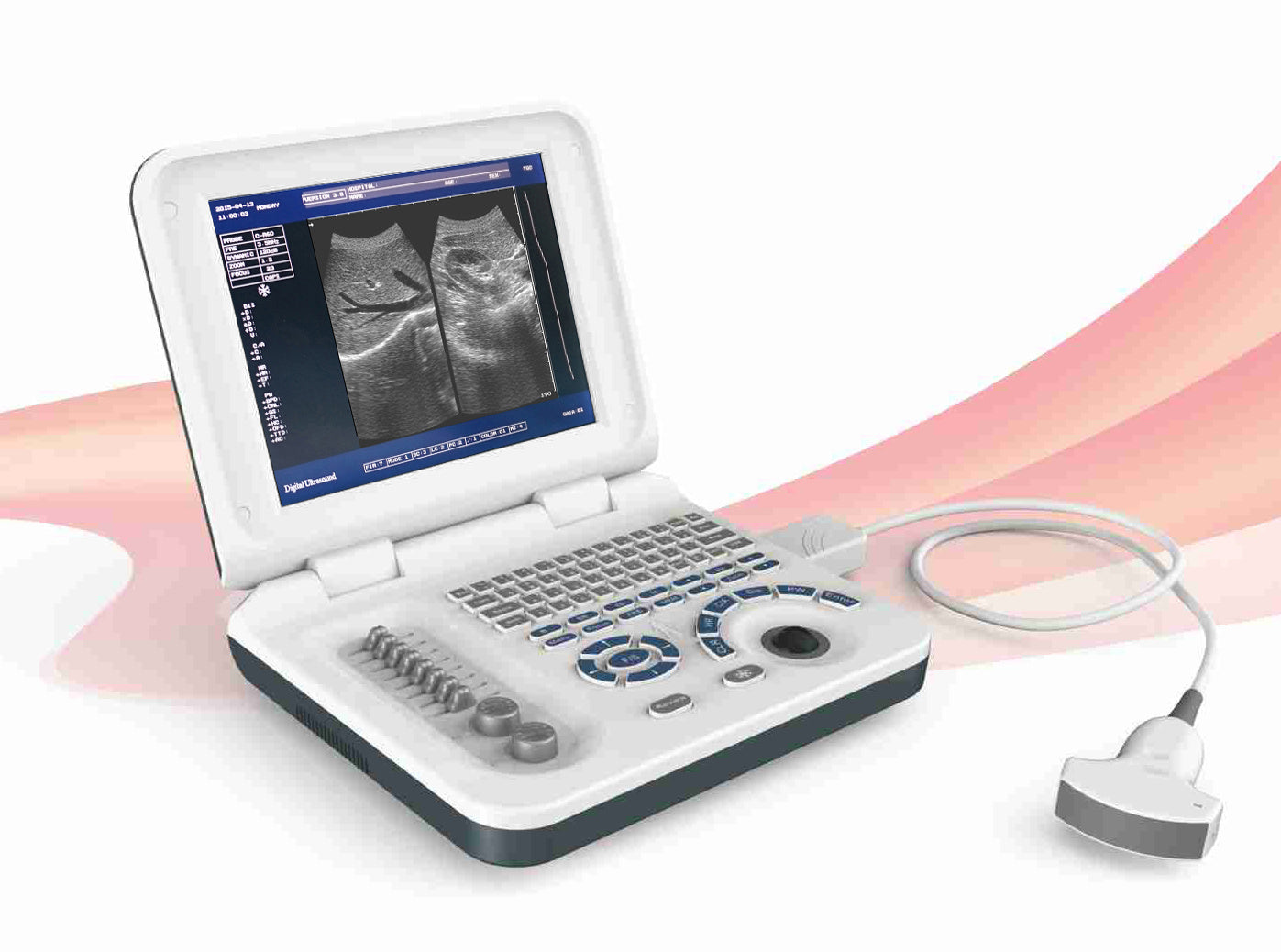

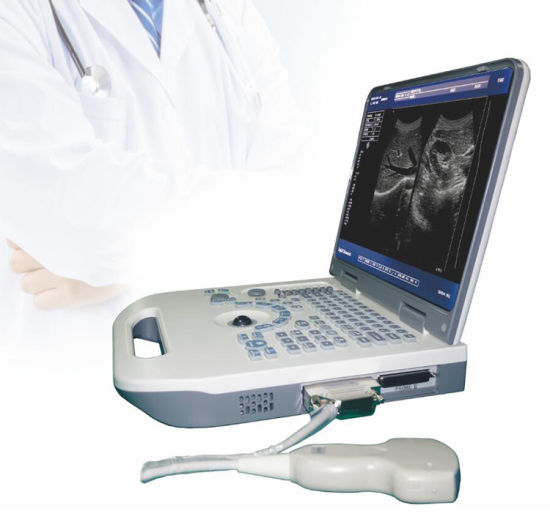

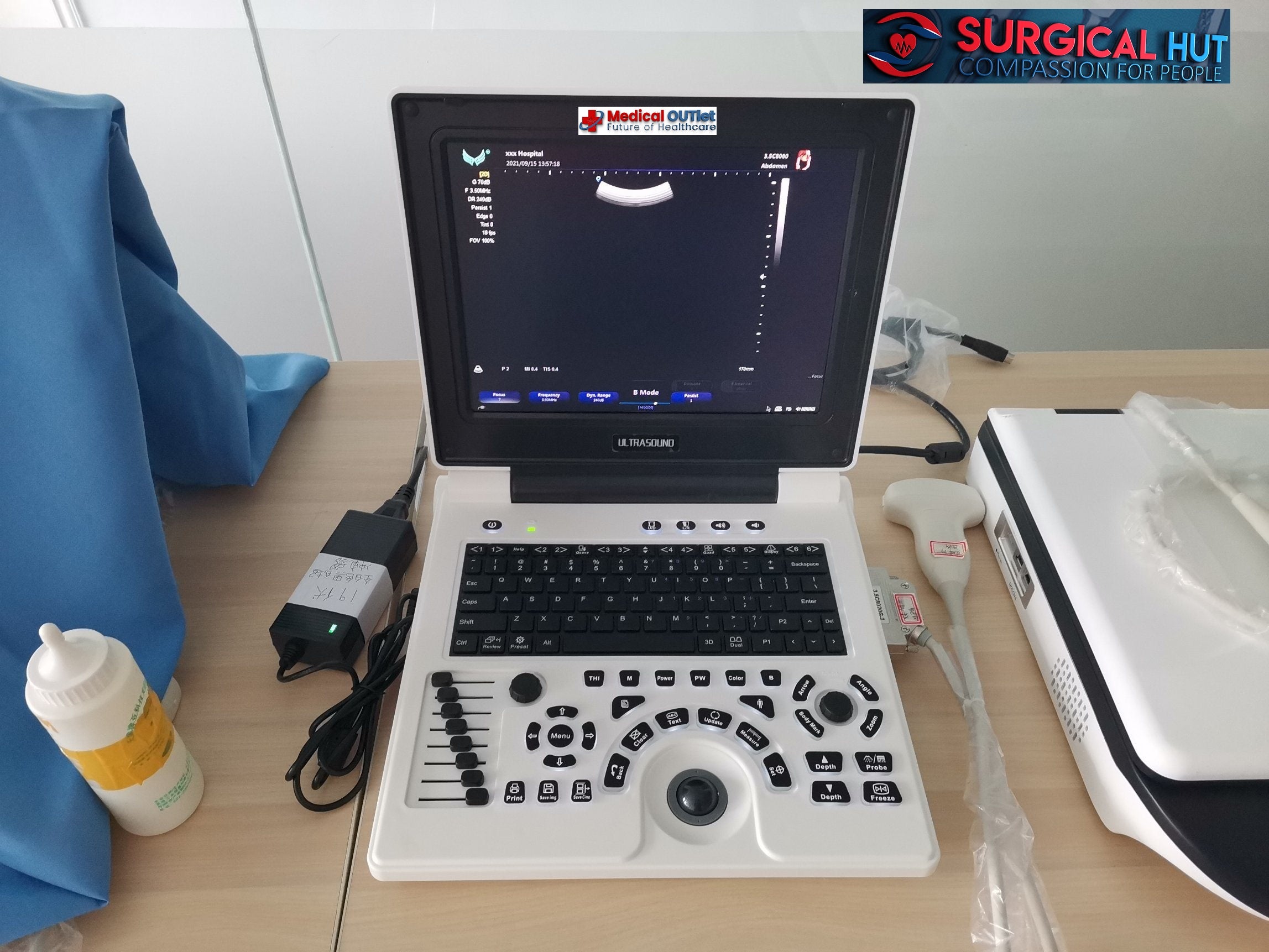

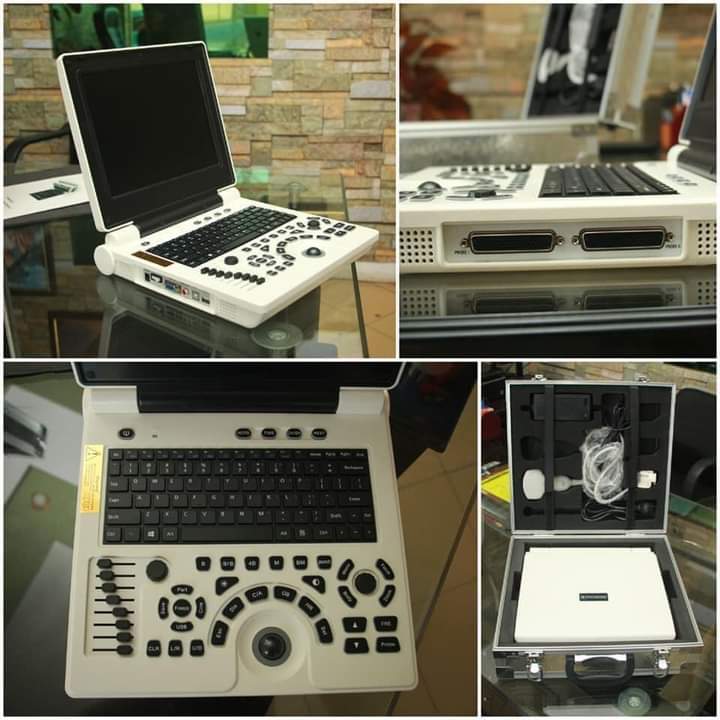

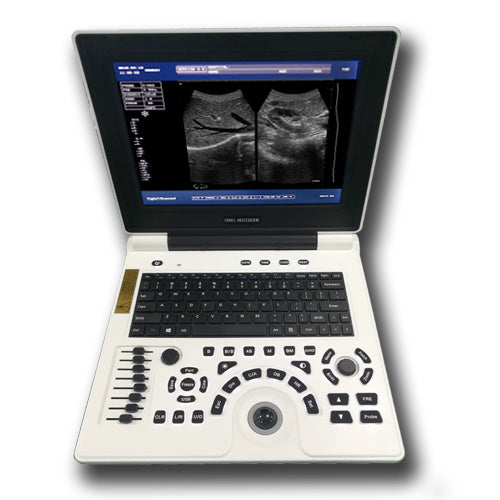

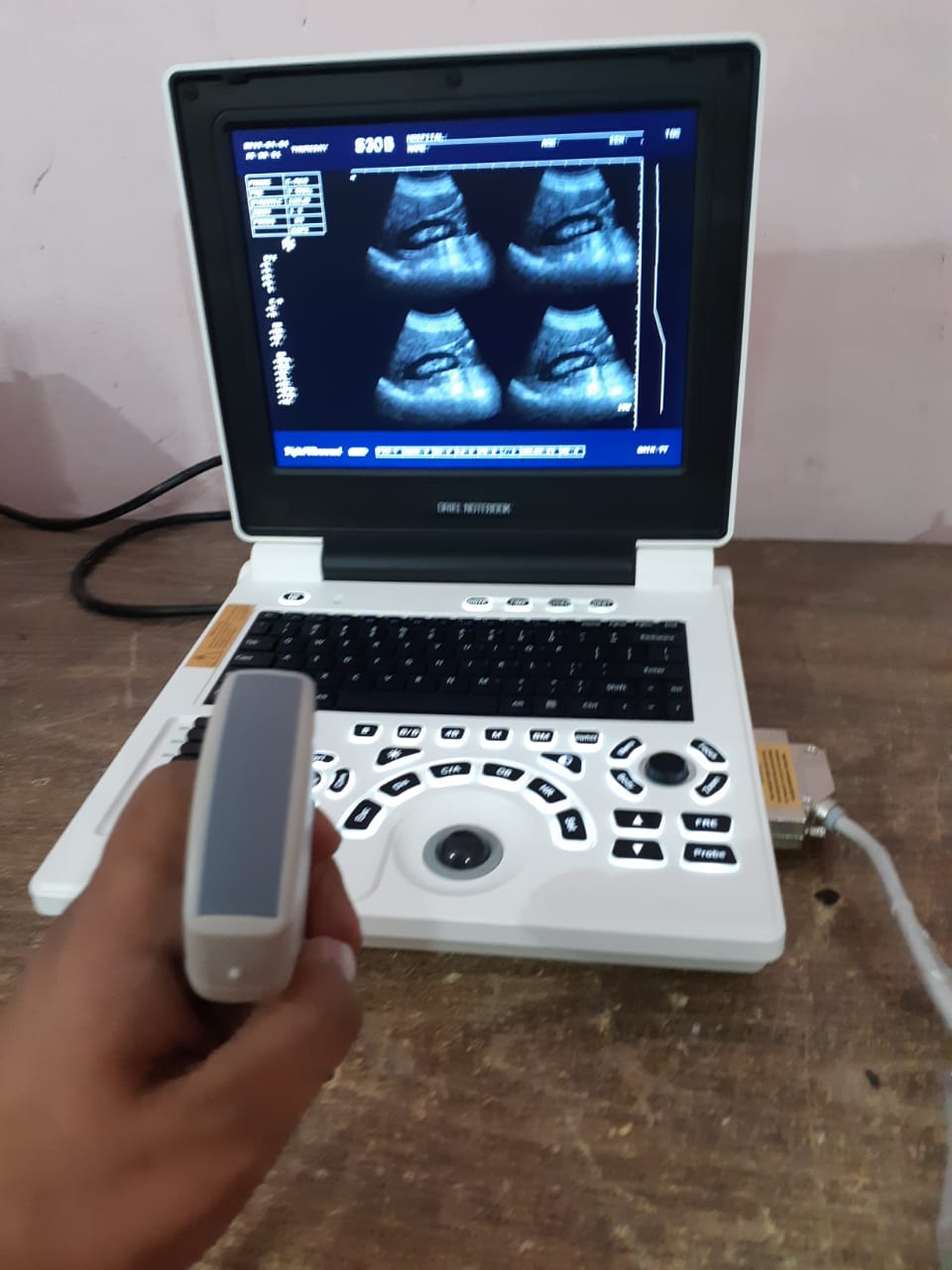

Oriel Notebook Ultrasound Machine - Portable Ultrasound Machine Oriel Notebook Price in Pakistan
- Support laser printer
- Big capacity built-in battery
- Sleek, streamlined, compact shape
- User friendly keyboard and controls
- Lightweight system for enhanced mobility
- High resolution, wide-angle 12” LCD
Specifications
Based on Windows 7 platform, equipped with SSD (Solid State Disk), makes the storage safer and more reliable, easy for switching machine. Built-in 15600mAh Lithium battery, enable continuous scanning ≥3 hours, battery capacity: 173Wh.
1. Monitor: 12 inch LED medicinal monitor
2. Scanning mode: convex array/linear array/micro-convex array/phased array
3. Probe interface: ≥1, single interface, probe automatic identification. Support: convex, linear, trans-vaginal, micro-convex, phased array, 4D volume, rectal probes etc.
4. Language: Chinese/English/Spanish/French/Russian/Arabic/Vietnamese/Portuguese
5.D isplay mode: B mode（B, B+B, 4B, B+M、M), C mode, PW mode, CW mode, real time 3D mode（4D）, B/C, B/C/PW, B/PW: 4 scanning speed adjustable
6.Electronic focus: 4
7.Body mark: ≥57
8. Frequency: 2.0-12.0MHz multi-frequency (2.0MHz, 3.0MHz, 3.5MHz, 4.0MHz, 5.5MHz, 5.0MHz, 6.5MHz, 9.0MHz, 6.0MHz, 7.5MHz, 12.0MHz as per probe). Convex probe frequency range: 2.0, 3.0, 3.5, 4.0, 5.5MHz
Trans-vaginal probe frequency range: 5.0, 6.0, 6.5, 7.5, 9.0MHz
Phased array probe frequency range: 2.0, 3.0, 3.5, 4.0, 5.0MHz
Linear probe frequency range: 6.0, 6.5, 7.5, 10.0, 12.0MHz
Micro-convex probe R20 frequency range: 5.0, 6.0, 6.5, 7.5, 9.0MHz
Micro-convex probe R11 frequency range: 2.0, 3.0, 3.5, 4.0, 5.5, 6.5, 7.5, 10.0MHz
4D volume probe frequency: 2.0, 3.0, 3.5, 4.0, 5.5, 6.5MHz
9. Image processing: up/down, left/right, angle, blood flow reversal
10. Magnification: 2-10 times magnification
11. Automatic freeze function: effective protection of probe life without any operation
12. Alternative image storage method: UI storage and image storage only
13. Cine loop speed, visible and adjustable
14. Measurement: distance, circumference, area, volume, heart rate, tube diameter, narrow rate, angle, speed, abdomen, cardiac, general, musculoskeletal, early obstetric, middle and late obstetric, pelvic(uterus accessory), small organ, urology, peripheral, gestational week and EDD, fetal weight, etc, formula can be converted to edit in
obstetric measurement. The distance, circumference and volume measurement of 3D mode.
15. Note: date, clock, name, gender, age, doctor, hospital, note (full screen character editing)
16. Cine loop≥1200 frames, can be viewed continuously or by frame
17. Storage: in the storage display interface can be sent to directly to the mobile device, image storage path (can
be stored directly to the U disk and other external storage devices), probe parameter storage, cine loop storage, measurement results storage, report storage.
18. Gray Scale: 256
19. With puncture guide function, puncture line position can be adjusted
20. With gravel positioning, dynamic target tracking function. 21、Dynamic range：0-270dB
22. Intelligent TGC: 8 segments
23. Pre-processiong: variable aperture, dynamic apodization, dynamic digital filtering, multi-beam parallel
processing technology, THI etc. 24、Post-processing:
Dynamic range 0-270dB, black and white afterglow 0-7
Smoothing 0-7
Gray curve 1-16
Frame correlation
SHG (Second Harmonic Generation)
Sound power
Wall filter
Cumulative number, baseline adjustment, sampling frame adjustment, spectrum sampling volume, spectral
sampling volume angle, PRF, etc. 25、Blind zone：≤4
26. Max scanning depth: 320mm；
27. Geometric accuracy: horizontal≤5%, vertical≤5%
28. Resolution: lateral≤2mm, axial≤1mm
29. External interface: VIDEO, USB port *4, DICOM 3.0
30. Magnification: 16 kinds; disease diagnosis more accurate
31. Frame rate：5-1016fps （adjustable as per requirement）
32. Scanning range: 5%–100%
33. Gain control：Total gain 0～127dB, PW gain 0-15, CFM gain: 0-15
34. Image optimization: 6 level adjustable
35. Smoothing: 8 level adjustable
36. Edge enhancement: 8 level adjustable
37. PRF: 16 level adjustable （1.82-29.43KHz）
38. Gray level curve: 16 level adjustable
39. Sound power: 15 level adjustable
40. Net weight: 6.3kg；Gross weight: 16kg;
41. Machine size: 375x350x80mm（LxWxH）；
